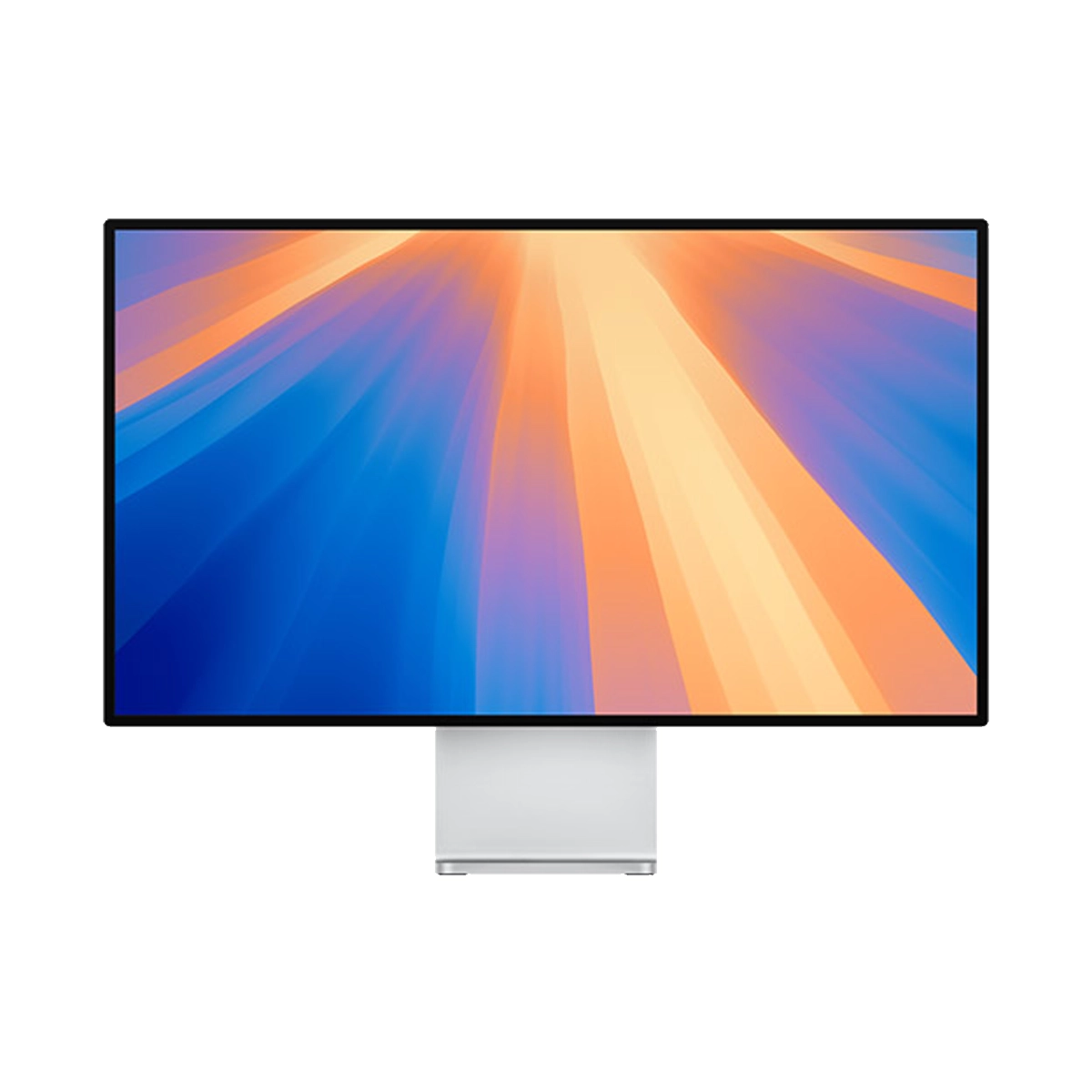

Pro Display XDR

Finish

Standard glass

Nano-texture glass

Display

Retina 6K Display

32-inch (diagonal) IPS LCD display with oxide TFT technology
Resolution: 6016 by 3384 pixels (20.4 million pixels) at 218 pixels per inch
Aspect ratio: 16:9

XDR (Extreme Dynamic Range)
Brightness: 1000 nits sustained (full screen), 1600 nits peak1
Contrast ratio: 1,000,000:1
Color: P3 wide color gamut, 10-bit depth for 1.073 billion colors
SDR brightness: 500 nits
Viewing angle: Superwide angle with high-fidelity color and contrast at 89º left, 89º right, 89º up, 89º down
Fully laminated; 1.65% reflectivity (typical)

Technology

2D backlighting system using 576 full array local dimming zones
Apple-designed timing controller (TCON) chip engineered to precisely control high-speed modulation of both 20.4 million LCD pixels and 576 LEDs in backlight for seamless synchronization
True Tone technology with dual ambient light sensor (ALS) design to ensure an accurate viewing experience in any ambient lighting condition

Refresh Rates

Reference Modes

Available reference modes:

Software Features

The following features require macOS Catalina 10.15.2 or later:
Reference mode selection
Custom reference modes
Reference status indicator
Brightness control
Portrait/landscape detection
Night Shift
True Tone
Dolby Vision, HDR10, and Hybrid-Log Gamma (HLG) playback support
User calibration

Size and Weight

Width: 28.3 inches (71.8 cm)
Height: 16.2 inches (41.2 cm)
Depth: 1.1 inches (2.7 cm)
Weight: 16.49 pounds (7.48 kg)

Pro Stand

Height of display with stand, landscape, top position
25.7 inches (65.3 cm)

Height of display with stand, landscape, bottom position
21.0 inches (53.3 cm)

Height of display with stand, portrait, top position
31.7 inches (80.6 cm)

Depth of display with stand
9.3 inches (23.6 cm)

Width of stand
7.1 inches (18.0 cm)

Height adjustment: the system allows for a total height adjustment of 120 mm (60 mm in each direction from the midpoint)
Orientation: landscape or portrait
Tilt: −5° to +25°

Display with stand size and weight

Stand size and weight

Attach and detach
Effortlessly attaches and detaches for quick and easy transportation. The puck-shaped magnetic connector is designed to attach to the back of the display and locks Pro Stand and the display together. To detach, simply unlock the slider and tilt the display far back to release the magnets, then lift the display off Pro Stand.

VESA Mount Adapter

Size and weight

Width: 4.7 inches (11.9 cm)
Height: 4.7 inches (11.9 cm)
Depth: 0.72 inch (1.83 cm)
Weight: 0.62 pound (0.28 kg)

Attach
Easy-to-attach alternative to Pro Stand. With a similar design to the magnetic connector on Pro Stand, it can be placed and secured quickly and easily using the included Apple-designed tool.
Compatible with 100 x 100 mm VESA stand or mount.

Connections

One Thunderbolt 3 (USB-C) port, three USB-C ports
One upstream port for Mac Pro or other Thunderbolt 3 host (96W host charging)
Three USB-C (USB 2) ports for charging or syncing

Compatibility

Pro Display XDR is compatible with the following Mac models running macOS Catalina 10.15.2 or later:

• Mac Pro (2019) with MPX Module GPUs
• 15-inch MacBook Pro (2018 or later)
• 16-inch MacBook Pro (2019)
• 13-inch MacBook Pro with four Thunderbolt 3 ports (2020)
• 13-inch MacBook Pro with M1 chip (2020)
• MacBook Air (2020)
• MacBook Air with M1 chip (2020)
• 27-inch iMac (2019 or later)
• 21.5-inch iMac (2019)
• Mac mini with M1 chip (2020)
• Any Mac model with Thunderbolt 3 ports paired with Blackmagic eGPU or Blackmagic eGPU Pro

Electrical and Operating Requirements

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Operating temperature: 50° to 95° F (10° to 35° C)
Relative humidity: 5% to 95% noncondensing
Maximum altitude: tested up to 16,400 feet (5000 meters)

In the Box

Pro Display XDR
Power cord (2 m)
Apple Thunderbolt 3 Pro Cable (2 m)
Polishing cloth
