Mac Studio

Tech Specs

Finish

Silver

Chip

Apple M4 Max chip
14-core CPU with 10 performance cores and 4 efficiency cores
32-core GPU
Hardware-accelerated ray tracing
16-core Neural Engine
410GB/s memory bandwidth

Apple M3 Ultra chip
28-core CPU with 20 performance cores and 8 efficiency cores
60-core GPU
Hardware-accelerated ray tracing
32-core Neural Engine
819GB/s memory bandwidth

Media Engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode

Media Engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Two video decode engines
Four video encode engines
Four ProRes encode and decode engines
AV1 decode

Configurable to:
M4 Max with 16‑core CPU, 40‑core GPU, and 16‑core Neural Engine (546GB/s memory bandwidth)

Configurable to:
M3 Ultra with 32‑core CPU, 80‑core GPU, and 32‑core Neural Engine (819GB/s memory bandwidth)

Apple Intelligence

Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

Memory

36GB
36GB unified memory

96GB
96GB unified memory

Configurable to:
48GB, 64GB, or 128GB (M4 Max with 16-core CPU and 40‑core GPU)

Configurable to:
256GB or 512GB (M3 Ultra with 32-core CPU and 80‑core GPU)

Storage

512GB
512GB SSD

1TB
1TB SSD

Configurable to:
1TB, 2TB, 4TB, or 8TB

Configurable to:
2TB, 4TB, 8TB, or 16TB

Display Support

M4 Max

Simultaneous support for up to five displays:
Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI

M3 Ultra

Simultaneous support for up to eight displays:
Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz

Thunderbolt 5 digital video output
Support for native DisplayPort 2.1 output over USB‑C

HDMI display video output
Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
Support for variable refresh rate (VRR), HDR, and multichannel audio

Audio

Built-in speaker
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output

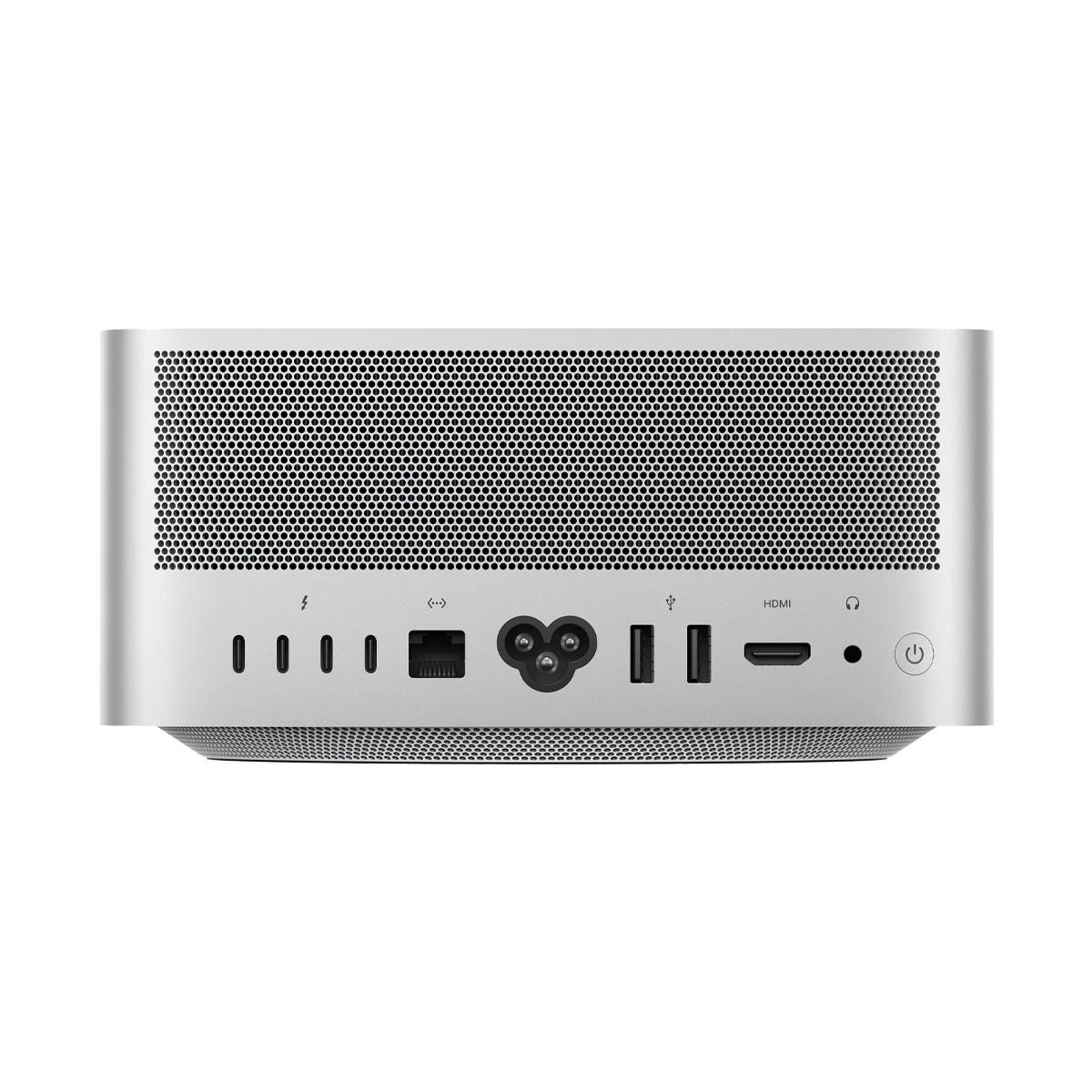

Connections and Expansion

Four Thunderbolt 5 (USB‑C) ports with support for:
Thunderbolt 5 (up to 120Gb/s)
USB 4 (up to 120Gb/s)
USB 3 (up to 10Gb/s)
DisplayPort 2.1
Two USB 3 (USB‑A) ports (up to 5Gb/s)
HDMI 2.1 port
10Gb Ethernet
3.5 mm headphone jack

On front (M4 Max):
Two USB‑C ports (up to 10Gb/s)
SDXC card slot (UHS-II)

On front (M3 Ultra):
Two Thunderbolt 5 ports (up to 120Gb/s)
SDXC card slot (UHS-II)

Communications

Wi-Fi
Wi-Fi 6E (802.11ax)

Bluetooth
Bluetooth 5.3

Ethernet
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

Height: 3.7 inches (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight (M4 Max): 6.1 pounds (2.74 kg)
Weight (M3 Ultra): 8.0 pounds (3.64 kg)

Electrical and Operating Requirements

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 480W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 95% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)

Operating System

macOS
macOS is the most advanced desktop operating system in the world. It helps you stay productive and creative with help from Apple Intelligence, iPhone Mirroring, window tiling, major updates to Safari, and more.

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
